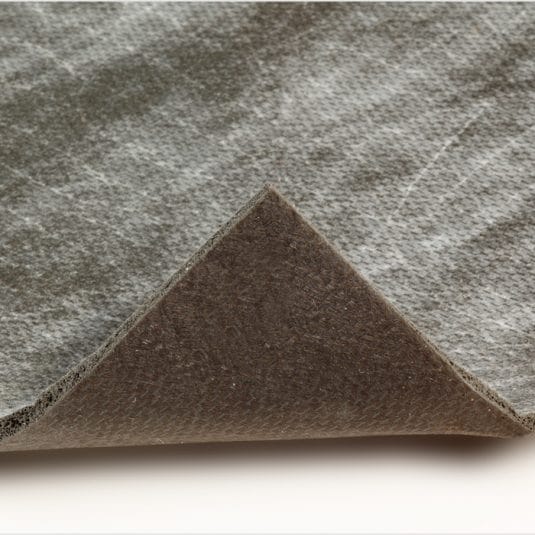

Tred Mor 1562 – 62 oz
Specifications
Tred-MOR® 1562
Tred-MOR® carpet cushions have been the industry standard since 1985. They’re engineered for high-traffic public spaces to keep carpets looking and feeling great longer by adding tensile strength and resiliency while reducing the loss of carpet pile height dramatically.
RECOMMENDED
Extra-heavy commercial. Includes institutional areas subject to CONTINUOUS rolling- wheel traffic.*
BENEFITS
Inhibits the growth of mold, mildew, and odor-causing bacteria Keeps spills from penetrating to subfloor
Extends the life of the carpet without sacrificing comfort or appearance
Provides insulation and noise suppression to floors and is recommended for radiant- heating floors
100% recyclable at the end of its useful life
FEATURES
Made from synthetic rubber
Includes StainSTOP™ moisture barriers Features Guardian™ antimicrobial
Available with Quik-LIFT® releasable backing for fast removal and re-install Meets or exceeds CRI Green Label Plus for air quality
SPECIFICATION DATA
Product Code | BV017 |
Product Name | Tred-MOR™ 1562 |
Traffic Classification | Extra-Heavy |
Material Weight | 62 oz./sqyd |
Density | 33 lbs/cubic foot |
Thickness | 0.156″ |
Product Dimensions | 54″x 60′ (30 sqyds) |
Mfg. Tolerances | Width: +/- 1% Thickness: +0.30/-0.015 |
Approx Shipping Weight | 124 lbs per roll |
Color | Black |
Material Content | Made with Synthetic |
Design Configuration | Flat/Flat |
Backing | Spunbonded |
Backing Bottom | Poly-Tek |
Antimicrobial | Guardian™ |
Moisture Resistant | 98% |
Indoor Air | CRI Green Label Plus-certified |
COMFORT DATA
Cold PSI @ 25% Deflection Min. | 7 (Method 601/12151) |
Cold PSI @ 65% Deflection Min. | 45 (Method 601/12151) |
Breaking Strength PSI Length | 45 (Min. ASTM-D2646) |
Breaking Strength PSI Width | 41 (Min. ASTM-D2646) |
Compression Set | 15% |
FLAME CERTIFICATION
Pill Test | Pass (DOC-FF 1-70) |
Smoke Chamber | Pass |
Flooring Radiant Panel | ** |
ACOUSTICAL DATA
Impact Insulation Class (IIC) | 71 (ASTM-492) |
Impact Noise Rating (INR) | 20 (ASTM-492) |
Sound Absorption (NRC) | 0.30 (ASTM C423-81) |
THERMAL INSULATION
R- | 0.270 |
K-Value | 0.577 |
PRODUCT NOTICES
*For maximum carpet protection, rolling-wheel areas should be double glued to prevent carpet stretching and carpet delamination caused by shear forces and friction. Notes: Scrim backing or other raw materials may be changed without prior notice when shortages occur or when technology advancements become available to improve product performance. Typical product properties are derived from averages resulting from usual manufacturing tolerances. Such variances will not affect product quality or performance.
**Not applicable to separate carpet cushion. Carpet must be tested in composition with cushion.
